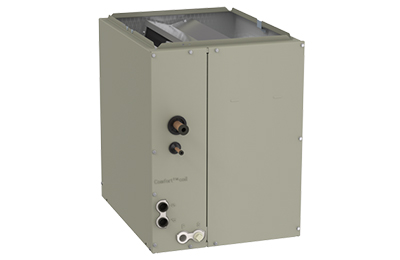

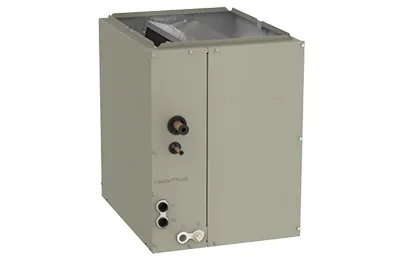

4TXC
4TXC
Up/Down/Horizontal Left and Right Airflow
- 1.5–5 ton
- Single, 2-stage and variable speed equipment
- TXV (heat pump capable)
- Enhanced fin design for efficiency and humidity control
- Double-sloped high temp drain pan
The 4TXC cased coil is a universal model, capable of handling up, down, horizontal, left and right airflow in a 1.5–5 ton unit. Trane’s all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger—working with your heating system in the winter and your cooling system in the summer—featuring a new, enhanced fin design for greater heat transfer.

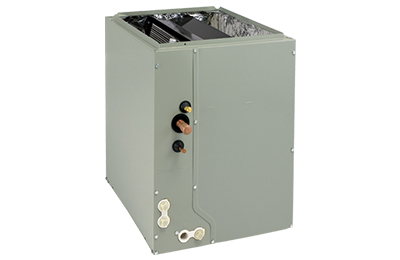

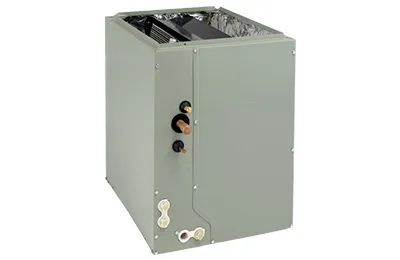

4PXC-D/4PXC-U
4PXC-U/4PXC-D
4PXC-D: Dedicated Downflow (horizontal right with optional kit)
4PXC-U: Upflow/Downflow (horizontal left/right with optional kit)
- 1.5–5 ton
- Single, 2-stage and variable speed equipment
- TXV (heat pump capable)
- Enhanced fin design for efficiency and humidity control
- Double-sloped high temp drain pan
- All-aluminum to prevent formicary corrosion
The 4PXC-D cased coil is a dedicated downflow model, which can also be configured for horizontal right with an optional kit. The 4PXC-U is a upflow/downflow model, which can be adapted to horizontal left/right with an optional kit. Both are 1.5–5 ton units. Our all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger—working with your heating system in the winter and your cooling system in the summer—featuring a new, enhanced fin design for greater heat transfer.

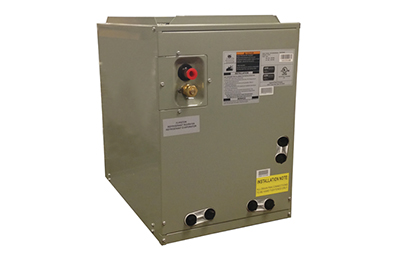

4MXC
4MXC
Up/Down/Horizontal/Left and Right Airflow
- 2–5 ton
- Single stage equipment only
- Fixed orifice
- TXV kit available for expanded ratings and applications
- All aluminum to prevent formicary corrosion
The 4MXC is a 1.5–5 ton cased value model coil suitable for universal installations—up, down, horizontal, left, or right airflow. Also known as an evaporator coil or an indoor coil, this piece is the unsung hero of your heating or cooling system. Our all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger—working with your heating system in the winter and your cooling system in the summer.

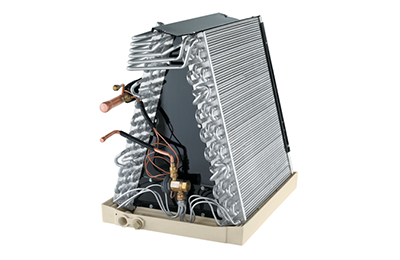

4PXA
4PXA
Upflow Only
- 1.5–5 ton
- TXV (heat pump capable)
- Enhanced fin design for efficiency and humidity control
- Double-sloped high temp drain pan
- All-aluminum to prevent formicary corrosion
The uncased, 1.5–5 ton 4PXA coil is designed for upflow installations. Also known as an evaporator coil or an indoor coil, this piece is the unsung hero of your heating or cooling system. Our all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger—working with your heating system in the winter and your cooling system in the summer—featuring a new, enhanced fin design for greater heat transfer.

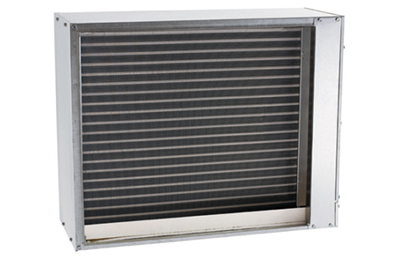

4TXF
4TXF
Horizontal Airflow
- 1.5–5 ton
- Single, 2-stage and variable speed equipment
- TXV (Heat pump capable)
- High temp drain pan
- All-aluminum to prevent formicary corrosion
The 4TXF coil is a 1.5–5 ton cased horizontal unit. Also known as an evaporator coil or an indoor coil, this piece is the unsung hero of your heating or cooling system. Our all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger—working with your heating system in the winter and your cooling system in the summer—featuring a new, enhanced fin design for greater heat transfer.
