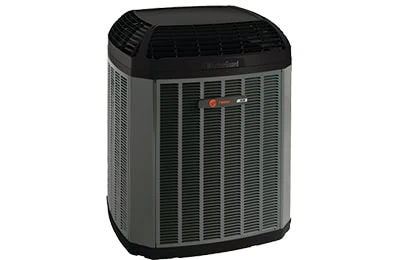

XV20i
4TWV0
- ComfortLink™ II Capability
- Climatuff® Compressor (stages): 750
- 25 – 100% Capacity Variability*
- Compressor Sound Insulator
- 54 – 76 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
- WeatherGuard™ top
* XV20i vary speed in 1/10 of 1% increments
The XV20i TruComfort™ variable speed heat pump system is one of the industry’s most efficient systems, with ratings up to 21.00 SEER/10.00 HSPF, available in 2-, 3-, 4- and 5-ton models. The Climatuff® variable speed inverter compressor runs at the exact speed needed to keep your home comfortable. Other key features include a woven Spine Fin™ coil, a swept fan blade, ComfortLink™ II capability, and a Weatherguard Top™, which is a unique design exclusive to Trane that protects the unit from the elements.

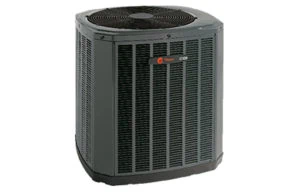

XV19 TruComfort™ Low Profile
4TWL9
Up to 19.50 SEER/11.50 HSPF
- ComfortLink™ II Capability
- Climatuff® Compressor (stages): 500-700**
- 30-100+ % Capacity Variability*
- Compressor Sound Insulator
- 43-57^ Overall Sound Power Level [dB(A)]
- Plate fin Coil
^ Sound pressure levels per ARI 275
* XV19 vary speed in 1/10 of 1% increments
** 2 & 3 ton have 500 stages, 4 ton has 650 stages, 5 ton has 700 stages
+ 2 & 3 ton are 50-100%, 4 ton is 35-100%, 5 ton is 30-100%
The XV19 TruComfort™ was designed for Ultra Quiet operation to meet the very low sound requirements that some cities have in place for mechanical HVAC systems. With minimum/maximum sound pressure levels of 43 to 57 dB(A), the XV19 will not only be the quietest heat pump, but also the most efficient ducted split system heat pump Trane has ever produced!

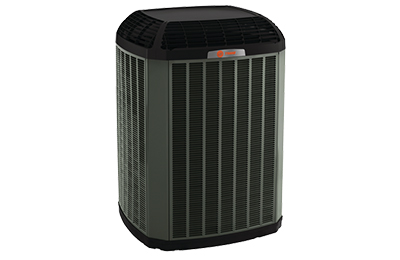

XV18
4TWV8
Up to 18.00 SEER/10.00 HSPF
- ComfortLink™ II Capability
- Climatuff® Compressor (stages): 750
- 25 – 100% Capacity Variability*
- Compressor Sound Insulator
- 54 – 76 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
* XV18 vary speed in 1/10 of 1% increments
One of the industry’s most reliable and cost-effective heat pump units, the XV18 TruComfort™ variable speed system offers up to 18.00 SEER/10.00 HSPF, available in 2-, 3-, 4- and 5-ton models. The Climatuff® variable speed inverter compressor runs at the exact speed needed to keep your home comfortable. Other key features include a woven Spine Fin™ coil, a swept fan blade, and ComfortLink™ II capability. This unit has been tested to stand up to the elements, giving you peace of mind while lowering heating and cooling costs in your home.
XL18i
4TWX8
Up to 18.00 SEER/9.50 HSPF
- Climatuff® Compressor (stages): 2
- 70/100% Capacity Variability
- 72 – 74 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
- WeatherGuard™ top
The two-stage XL18i heat pump offers up to 18.00 SEER/9.50 HSPF, available in 2, 3, 4 and 5-ton models, making it an energy-efficient choice for home comfort. This unit features a Spine Fin™ coil, swept fan blade, and a two-stage Climatuff® compressor to handle any outdoor climate conditions and prevent interior temperature swings. A Weatherguard Top™, a unique design exclusive to Trane, protects the unit from the elements.
XR17
4TWR7
Up to 17.25 SEER/9.60 HSPF
- Climatuff® Compressor (stages): 2
- 70/100% Capacity Variability
- 72 – 74 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
The two-stage XR17 heat pump offers up to 17.25 SEER/9.60 HSPF, available in 2, 3, 4 and 5-ton models, making it an energy-efficient choice for home comfort. This unit’s Spine Fin™ coil and a two-stage Climatuff® compressor handle any outdoor climate conditions and prevent interior temperature swings.
XR17 3-Phase
4TWA7
Up to 17.50 SEER/9.60 HSPF
- 3-phase
- Climatuff® Compressor (stages): 2
- 70/100% Capacity Variability
- 72 – 74 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
The XR17 3-Phase heat pump offers up to 17.50 SEER/9.60 HSPF, available in 3, 4, and 5-ton models, making it an energy-efficient choice for home comfort. This unit’s Spine Fin™ coil and a two-stage Climatuff® compressor handle any outdoor climate conditions and prevent interior temperature swings.

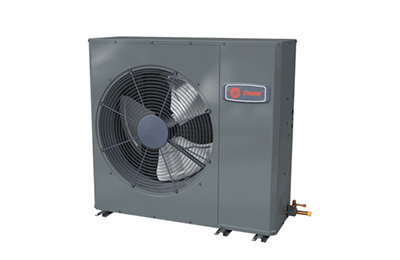

XR16 Low Profile
4TWL6
Up to 17.00 SEER/10.00 HSPF
- Climatuff® Compressor (stages): 1
- 100% Capacity Variability
- 69-74 Overall Sound Power Level [dB(A)]
- Plate fin Coil
The single-stage XR16 low profile heat pump boasts an industry-leading efficiency up to 17.00 SEER/10.00 HSPF, with quieter running sound as low as 69 dBA. Available in 1.5-5 ton models, making it an energy-efficient choice for home comfort.
XL16i
4TWX6
Up to 17.00 SEER/9.60 HSPF
- Climatuff® Compressor (stages): 1
- 100% Capacity Variability
- 70 – 74 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
- WeatherGuard™ top
The single-stage XL16i heat pump offers up to 17.00 SEER/9.60 HSPF, available in 1.5-5 ton models, making it an energy-efficient choice for home comfort. This unit features a Spine Fin™ coil, swept fan blade, and a Climatuff® compressor to handle any outdoor climate conditions and prevent interior temperature swings. A Weatherguard Top™, a unique design exclusive to Trane, protects the unit from the elements.
XR16
4TWR6
Up to 17.00 SEER/10.00 HSPF
- Climatuff® Compressor (stages): 1
- 100% Capacity Variability
- 70 – 75 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
The single stage XR16 heat pump offers up to 17.00 SEER/10.00 HSPF, available in 1.5 – 5 ton models, making it an energy-efficient choice for home comfort. This unit’s Spine Fin™ coil and a Climatuff® compressor can handle outdoor climate conditions and prevent interior temperature swings.
XR15
4TWR5
Up to 15.00 SEER/9.50 HSPF
- Climatuff® Compressor (stages): 1
- 100% Capacity Variability
- Compressor Sound Insulator (Select Models)
- 71 – 75 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
The single-stage XR15 heat pump offers up to 15.00 SEER/9.50 HSPF, available in 1.5-5 ton models, making it an energy-efficient choice for home comfort. This unit features a Spine Fin™ coil and a Climatuff® compressor to handle any outdoor climate conditions and prevent interior temperature swings.
XR14
4TWR4
Up to 14.50 SEER/8.50 HSPF
- Climatuff® Compressor (stages): 1
- 100% Capacity Variability
- 71 – 76 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
The single-stage XR14 heat pump offers up to 14.50 SEER/8.50 HSPF, available in 1.5-5 ton models, making it an energy-efficient choice for home comfort. This unit features a Spine Fin™ coil and a Climatuff® compressor to handle any outdoor climate conditions and prevent interior temperature swings.
XR14 3-Phase
4TWA4
Up to 15.50 SEER/9.50 HSPF
- 3-phase
- Climatuff® Compressor (stages): 1
- 100% Capacity Variability
- 74 – 75 Overall Sound Power Level [dB(A)]
- Spine Fin™ Coil
The XR14 3-Phase heat pump offers up to 15.50 SEER/9.50 HSPF, available in 3, 3.5, 4, and 5-ton models, making it an energy-efficient choice for home comfort. This unit features a Spine Fin™ coil.
